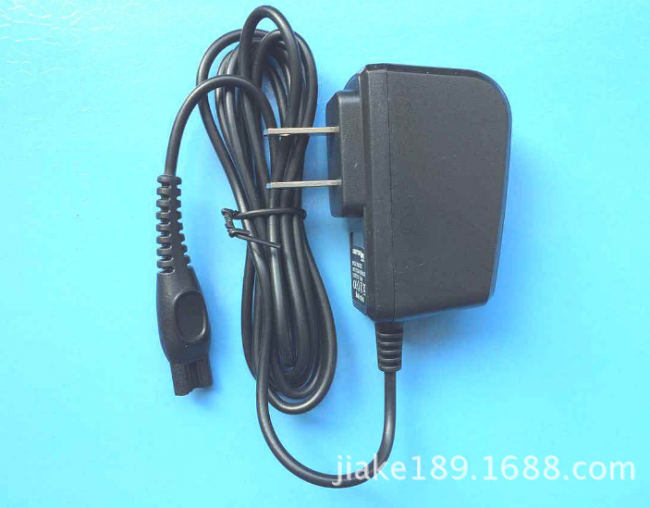

The suggested retail price of $20, Mason type KMS-0501 brand

3C Certificate No. 2010010202446329 time to market 2015-01 supply category ordering

Whether the original brand is not applicable to the product charger input voltage range of 100-240VAC

The output voltage of 12VDC charger for charging form product size 59*25*41MM

Product weight 0.2 OEM can 4-7 the fastest shipping time OEM days

Whether to support a support on behalf of the invoice do not provide invoices to customer service service pack three stores

Detailed description：

Condition Input input conditions

AC100 ~ 240V 50/60 Hz 0.15A Max

Rated Voltage Input input voltage rating

100Vac ~ 240Vac

Voltage Range Input input voltage range

90Vac ~ 264Vac

Rated Frequency Input input rating

50/60Hz

Frequency Range Input input frequency range

47Hz ~ 63Hz

Current Input input current

Max 0.3A

Inrush Current Input input surge current

Max 30A

No Load Power Consumption Input no load input power

Max At 115Vac/230Vac 0.5W

Efficiency efficiency

75% Min

Output Voltage Rated & Current rated output voltage current

12V / 12W MAX 1A

Line Regulation Output output linear adjustment rate

+ 1%

Load Regulation Output output load adjustment rate

+ 5%

Over Shoot Output output overshoot

10% Max

Ripple And Noise Output output ripple and noise

1% Max

Rising Time Output output rise time

Max At 115Vac 20ms

Hold up Time Output output hold time

Min At 230Vac 8ms

Protection protection

OVP SCP OPP OCP

Withstand Voltage Dielectric pressure

5mA 60s 3KV

Current Leakage leakage current

0.25 At 230Vac mA

Plug Specification DC DC header specification

5.5*2.1*11H

Dimension size

81.2*50*60.5mm

Temperature Range Operating operating temperature range

0 degrees to 40 degrees C

Temperature Range Storage storage temperature range

-20 C ~ +85

Products: regulation, U.S. regulations, EU, South Korea, Britain, the two foot Australian rules, three Australian rules.

LCD display, LED light bar, mobile hard disk box, ADSL, digital photo frame, electronic

Refrigerator, MID tablet computer, portable DVD, shaver, massager, security alarm system etc.
