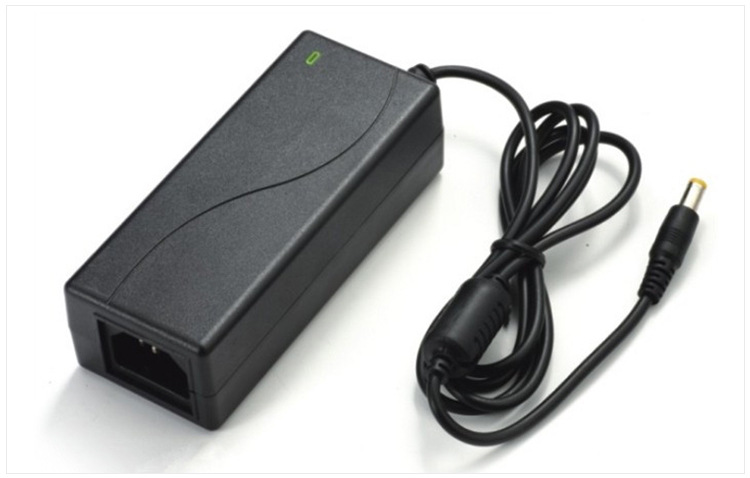

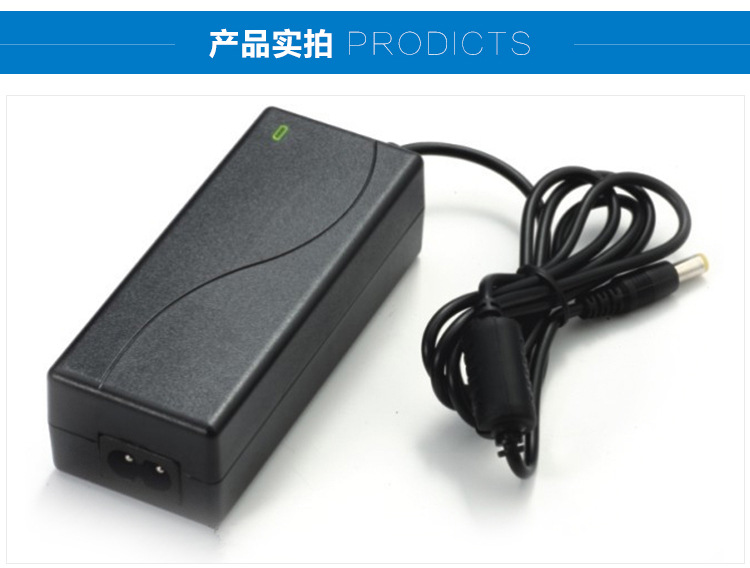

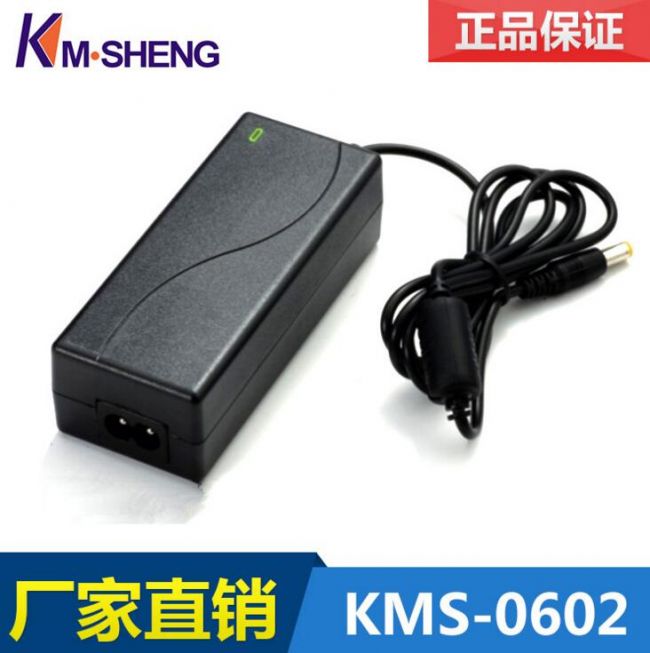

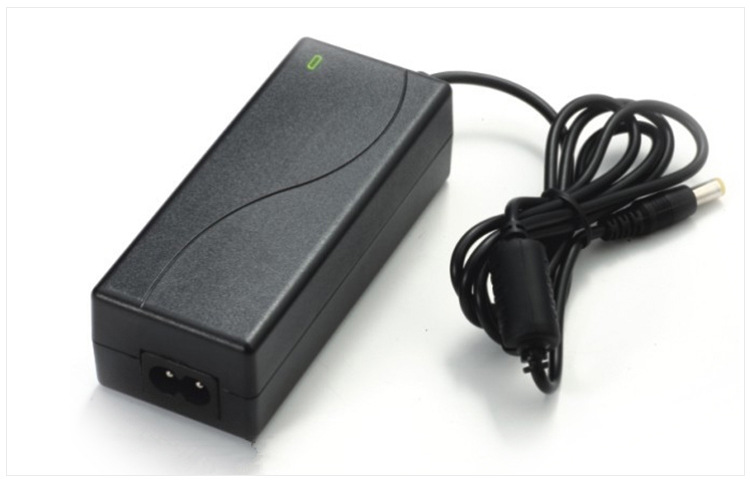

Product Name: /5A 60W MAX 12V
Detailed description:
Condition Input input conditions
AC100 ~ 240V 50/60 Hz 0.15A Max
Rated Voltage Input input voltage rating
100Vac ~ 240Vac
Voltage Range Input input voltage range
90Vac ~ 264Vac
Rated Frequency Input input rating
50/60Hz
Frequency Range Input input frequency range
47Hz ~ 63Hz
Current Input input current
Max 0.3A
Inrush Current Input input surge current
Max 30A
No Load Power Consumption Input no load input power
Max At 115Vac/230Vac 0.5W
Efficiency efficiency
75% Min
Output Voltage Rated & Current rated output voltage current
12V / 60W MAX 5A
Line Regulation Output output linear adjustment rate
+ 1%
Load Regulation Output output load adjustment rate
+ 5%
Over Shoot Output output overshoot
10% Max
Ripple And Noise Output output ripple and noise
1% Max
Rising Time Output output rise time
Max At 115Vac 20ms
Hold up Time Output output hold time
Min At 230Vac 8ms
Protection protection
OVP SCP OPP OCP
Withstand Voltage Dielectric pressure
5mA 60s 3KV
Current Leakage leakage current
0.25 At 230Vac mA
Plug Specification DC DC header specification
USB
Dimension size
114.5*50*31.1mm
Temperature Range Operating operating temperature range
0 degrees to 40 degrees C
Temperature Range Storage storage temperature range
-20 C ~ +85
Products: regulation, U.S. regulations, EU, South Korea, Britain, the two foot Australian rules, three Australian rules.
[device]: for LCD display, LED lights, mobile hard disk box, ADSL, digital photo frame, electronic refrigerator, MID tablet computer, portable DVD, audio, massager, security alarm system etc.
