Brand Kmsheng model KMS-0609 type AC/DC power supply

Pulse width modulation and frequency modulation transistor connection IC input voltage 100-240 (V)

Output power 48 (W) output voltage 24 (V) efficiency 95 (%)

Output ripple noise 0 output voltage accuracy 95 (%) voltage regulation rate 95 (%)

Load regulation rate 90 (%) product certified CE output current 2 (A)

Working frequency 50-60 (HZ) working temperature 25 (c), the size of 114.5*50*30

Condition Input input condition

AC100 ~ 240V 50/60 Hz 0.15A Max

Rated Voltage Input input voltage rating

100Vac ~ 240Vac

Voltage Range Input input voltage range

90Vac ~ 264Vac

Rated Frequency Input input rating

50/60Hz

Frequency Range Input input frequency range

47Hz ~ 63Hz

Current Input input current

Max 0.3A

Inrush Current Input input surge current

Max 30A

No Load Power Consumption Input no load input power

Max At 115Vac/230Vac 0.5W

Efficiency efficiency

80% Min

Output Voltage Rated & Current rated output voltage current

/2A 48W MAX 24V

Line Regulation Output output linear adjustment rate

+ 1%

Load Regulation Output output load adjustment rate

+ 5%

Over Shoot Output output overshoot

10% Max

Ripple And Noise Output output ripple and noise

1% Max

Rising Time Output output rise time

Max At 115Vac 20ms

Hold up Time Output output hold time

Min At 230Vac 8ms

Protection protection

OVP SCP OPP OCP

Withstand Voltage Dielectric pressure

5mA 60s 3KV

Current Leakage leakage current

0.25 At 230Vac mA

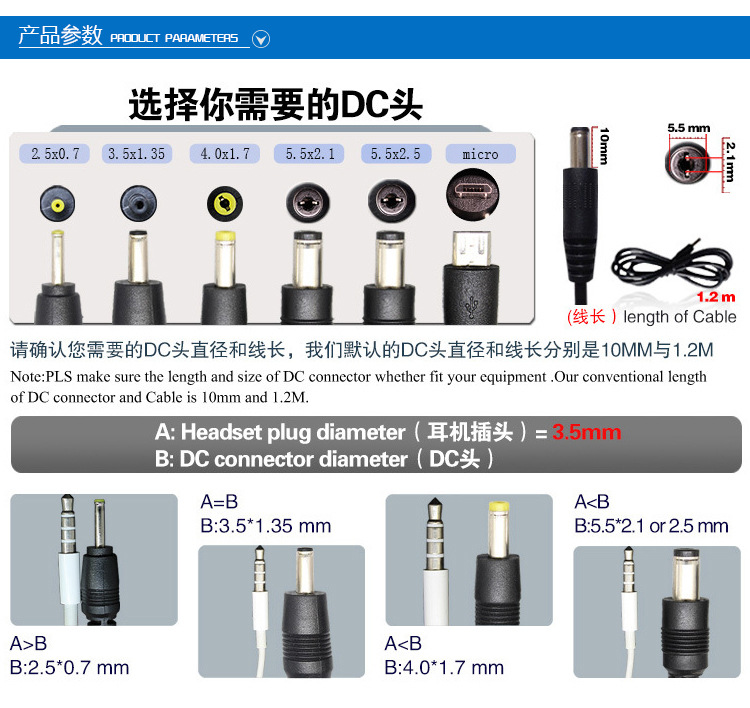

Plug Specification DC DC header specification

USB

Dimension size

114.5*50*31.1mm

Temperature Range Operating operating temperature range

0 degrees to 40 degrees C

Temperature Range Storage storage temperature range

-20 C ~ +85
